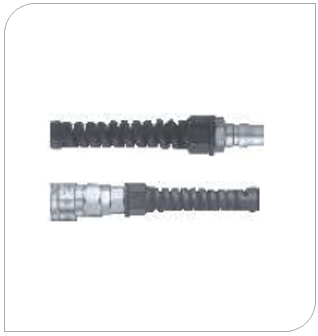

Pneumatic / Coupler / Rotary Nut Coupler
|
| Swivel mechanism eliminates hose twisting |
|
* Swivel mechanism eliminates hose twisting and relieves load on hands.
* To fit hose, simply slide it over the nipple & tighten the nut.
* Tightening outside of hose reduces hose slipping or fluid leaking
* No protuding hose clamp screw to strong when the hose is moved. |
|
|
|
| |
| Specifications |
| Body Marteri |
Carbon Steel, Chrome Plated |
| Size |
For 08 x 5.5 hose,For 10 x 6.5 hose,
For 12 x 8.0 hose |
| Working Pressure (Kg/cm2) |
15 |
| Pressure Resistance (Kg/cm2) |
20 |
| WorkingTemperature |
- 5°C ~ + 80°C |
| Paking Material |
NBR |
| Optional |
Viton |
|
| |
| Interchangeability |
| Can be connected to Hi-Coupler model 20, 30 and 40. Interchangeable with all Hi- Coupler series products. |
| |
| Model |
Application |
L (mm) |
A (mm) |
D (mm) |
Hex (mm) |
Hex1(mm) |
| 50SPS |
8x5.5Hose |
67.3 |
17 |
26.5 |
Hex.19 |
Hex.17 |
| 65SPS |
10x6.5Hose |
67.3 |
17 |
26.5 |
Hex.19 |
Hex.17 |
| 80SPS |
12x8Hose |
69.3 |
19 |
26.5 |
Hex.21 |
Hex.19 |
|
| |
|
| |
