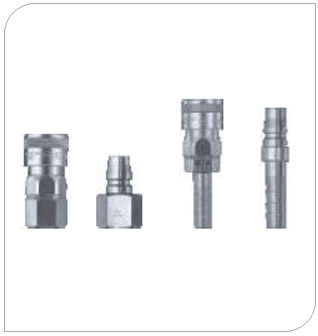

Pneumatic / Coupler / Hi-Coupler
|
| From factory air line to pneumatic tool connection,available invarious body materials, sizes and connection types. Excellent durability in any anvironment. |
|
* An excellent pupose coupler for connecting factory air supply to pneumatic tool hose.
* Carbon steel coupler for air and brass or stainless steel coupler for water.Note that fluid will flow out from the plug on disconnection.
* Important structural parts of steel models are hardend for added sterngth.Extremely wear reisitant and durable.
* All mating parts in the coupler are torqoe coated for long life so that they do loosen up during usage.
* Valves is made of SS304 & spring used are of SS302 material.
* All male connections come with teflon pre-coated. |
|
|
| |
| Specifications |
| Body Marteri |
CS(Chrome-plated) |
Brass |
SS304/316 |
| Size |
1/4"(20 type),3/8"(30type), 1/2"(40type)
3/4"(600type), 1"(800type) |
| Working Pressure (Kg/cm2) |
15 |
10 |
15 |
| Pressure Resistance (Kg/cm2) |
20 |
15 |
20 |
| Paking Material |
NBR,Viton (optional) |
|
| |
| Interchangeability |
|
1. Model 20, 30 and 40 have sockets and plugs that can be interchanged regardless of connection type. |
| |
2. Model 600 and 800 have sockets and plugs that can be interchanged regardless of connection type.however 1 and 2 cannot be interchanged with each other. |
| |
3. Interchangeable with all Hi-Coupler series products. |
|
| |
| SH Socket Hose |
| Model |
Application |
L (mm) |
D (mm) |
A (mm) |
T (mm) |
Bs (mm) |
| 20SH |
For 1/4" Hose |
72.5 |
26.5 |
30 |
9.0 |
5.0 |
| 30SH |
For 3/8" Hose |
76.5 |
26.5 |
34 |
11.3 |
7.5 |
| 40SH |
For 1/2" Hose |
78.5 |
26.5 |
36 |
15.0 |
9.0 |
| 60SH |
For 3/4" Hose |
92.0 |
35.0 |
45 |
21.0 |
14 |
| 80SH |
For 1" Hose |
1o2.0 |
35.0 |
55 |
27.0 |
16 |
|
| |
| SM Socket Male |
| Model |
Application |
L (mm) |
D (mm) |
Hex (mm) |
A (mm) |
Bs (mm) |
| 20SM |
Rc1/4" |
55.5 |
26.5 |
Hex 19 |
13.0 |
7 |
| 30SM |
Rc3/8" |
56.5 |
26.5 |
Hex 19 |
14.0 |
8 |
| 40SM |
Rc1/2" |
59.5 |
26.5 |
Hex 24 |
16.0 |
9 |
| 60SM |
Rc3/4" |
67.0 |
35.0 |
Hex 32 |
19.0 |
16 |
| 80SM |
Rc1" |
72.0 |
35.0 |
Hex 36 |
27.0 |
16 |
|
| |
| SF Socket Female |
| Model |
Application |
L (mm) |
D (mm) |
Hex (mm) |
A (mm) |
T |
| 20SF |
Rc1/4" |
49.5 |
26.5 |
Hex 19 |
13.0 |
Rc 1/4" |
| 30SF |
Rc3/8" |
50.5 |
26.5 |
Hex 21 |
14.0 |
Rc 3/8" |
| 40SF |
Rc1/2" |
52.5 |
26.5 |
Hex 29 |
16.0 |
Rc 1/2" |
| 60SF |
Rc3/4" |
61.0 |
35.0 |
Hex 35 |
17.0 |
Rc 3/4" |
| 80SF |
Rc1" |
68.0 |
35.0 |
Hex 41 |
22.0 |
Rc 1" |
|
| |
| PH Plug Hose |
| Model |
Application |
L (mm) |
A (mm) |
C (mm) |
T (mm) |
Bp (mm) |
| 20PH |
For 1/4" Hose |
57.0 |
30 |
20 |
9.0 |
5.0 |
| 30PH |
For 3/8" Hose |
61.0 |
34 |
20 |
11.3 |
7.5 |
| 40PH |
For 1/2" Hose |
63.0 |
36 |
20 |
15.0 |
7.5 |
| 600PH |
For 3/4" Hose |
77.0 |
45 |
23 |
21.0 |
13.0 |
| 800PH |
For 1 " Hose |
85.0 |
54 |
23 |
27.0 |
20.0 |
|
| |
| PM Plug Male |
| Model |
Application |
L (mm) |
A (mm) |
Hex (mm) |
C (mm) |
Bp (mm) |
| 20PM |
Rc 1/4" |
41.0 |
13 |
Hex. 14 |
20 |
7.5 |
| 30PM |
Rc 3/8" |
42.0 |
14 |
Hex. 19 |
20 |
7.5 |
| 40PM |
Rc 1/2" |
46.0 |
16 |
Hex. 22 |
20 |
12.0 |
| 600PM |
Rc 3/4" |
55.0 |
18 |
Hex. 32 |
23 |
19.0 |
| 800PM |
Rc 1" |
63.0 |
22 |
Hex. 35 |
23 |
22.00 |
|
| |
| PF Plug Female |
| Model |
Application |
L (mm) |
A (mm) |
Hex (mm) |
C (mm) |
Bp (mm) |
| 20PF |
Rc 1/4" |
36.0 |
13 |
Hex. 17 |
20 |
7.5 |
| 30PF |
Rc 3/8" |
37.0 |
14 |
Hex. 21 |
20 |
7.5 |
| 40PF |
Rc 1/2" |
38.0 |
15 |
Hex. 29 |
20 |
7.5 |
| 600PF |
Rc 3/4" |
45.0 |
17 |
Hex. 35 |
23 |
13.0 |
| 800PF |
Rc 1" |
54.0 |
22 |
Hex. 41 |
23 |
13.00 |
|
| |
|
| |
